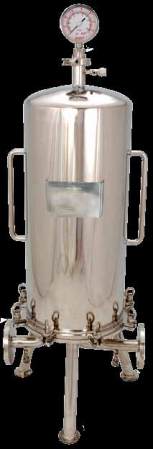

T-Line multiround housings are
designed for providing a robust solution
for critical filtration applications. The
housings are made of high quality
SS316L grade stainless steel (for pharma
/ biotech applications) and other suitable
MOC as required, to be compatible
with the contact fluid. Housings come
with gaskets and O-rings compounded
only from FDA approved materials. The
housing features swing bolts for ease
of opening and closing the housing
dome. The housing also features a
choice of sanitary and non-sanitary vent
and drain valve options. The Inlet and
outlet end connections are either flanged
or standard triclamp connections. The
housing is capable of incorporating
multiple cartridges of multiple lengths to
suit required flow rates.
1
T-LINE
MULTIROUND
HOUSINGS
**Option
FEATURES
• All wetted parts with customized
MOC with customized finish.
Housings can accommodate 3-27
rounds or more of filter cartridges
of 10,20,30 or 40” long.
• CIP and SIP capability for
pharma/ Biotech requirements
with in situ integrity testing
capability
• Optionally with sanitary
diaphragm valves for vent, inlet
and outlet sampling
• All housings with complete
documentation for
validation
• All gaskets and polymers
compounded as per US FDA
approved polymers
BENEFITS
• Easy cleaning and optimum flush
liquid requirement
• Precision engineering ensures
precise positioning of cartridge
and locking in place
• High surface finish ensures very
low bacterial/particle adhesion
and ease of cleanability
See Page No. 22 for Ordering information
FEATURES
PI
B
C
A
T-LINE
MULTIROUND
T-LINE
MULTIROUND
Specifications
Head and bowl : SS 316L*
Legs and clamps : SS 304
‘O’ ring seal
: Silicon / PTFE /EPDM
Mirror : Internal /External
Max Op Pressure (Pmx): 15 bar (218 psig)
140 °C (284 °F)**
Design (Pmx)
: 1.5 times
Tested (Pmx)
: 1. 2 times
Material of construction
Surface finish
Max operating temperature
Operating pressure
Special Coatings
PP / PTFE / PVDF for corrosive liquids
** Higher temperature or Pressure
compatibility design available on request.
** Other MOC available as required
3
1
5
2
3
4
4
Air Vent
SS316L
Mirror finish
Flange or Triclamp
end connection
Diaphragm** valve
for sampling
Sealed diaphragm
pressure gauge*
Diaphragm** valve
for sampling
Note: Specifications and dimensions may change. Please check with us before ordering.
SPECIFICATIONS
*Pressure Gauge shown is not a part of standard offering
Note: All end connection are flanged or triclamp type
3 & 4 ROUND
A0402-03/04107BS 10” LONG 853 200 400
A0402-03/04207BS 20” LONG 1103 200 400
A0402-03/04307BS 30” LONG 1353 200 400
A0402-03/04407BS 40” LONG 1603 200 400
5 &6 ROUND
A0402-05/06107BS 10” LONG 863 200 400
A0402-05/06207BS 20” LONG 1113 200 400
A0402-05/06307BS 30” LONG 1358 200 400
A0402-05/06407BS 40” LONG 1613 200 400
7 & 8 ROUND
A0402-07/08107BS 10” LONG 873 200 500
A0402-07/08207BS 20” LONG 1124 200 500
A0402-07/08307BS 30” LONG 1368 200 500
A0402-07/08407BS 40” LONG 1623 200 500
9 & 10 ROUND
A0402-09/10107BS 10” LONG 893 200 500
A0402-09/10207BS 20” LONG 1143 200 500
A0402-09/10307BS 30” LONG 1388 200 500
A0402-V10407BS
40” LONG 1643 200 500
11 -17 ROUND
A0402-11/…/17107BS 10” LONG 893 200 500
A0402-11/…/17207BS 20” LONG 1143 200 500
A0402-11/…/17307BS 30” LONG 1388 200 500
A0402-11/…/17407BS 40” LONG 1643 200 500
DESCRIPTION A
B D E
T LINE HOUSING
(PART NO)
TYPE
A B C
DESCRIPTION
