T-LINE
SINGLE ROUND
HOUSINGS
Surface finish
SPECIFICATIONS
Specifications
Head and bowl : SS 316L*
Legs and clamps : SS 304
‘O’ ring seal
: Silicon / PTFE / Viton / EPDM
Mirror : Internal /External
Max Op Pressure (Pmx): 15 bar (218psig)**
140 °C (284 °F)**
Design (Pmx)
: 1.5 times
Tested (Pmx)
: 1. 2 times
Material of construction
Surface finish
Max operating temperature
Operating pressure
**Option
FEATURES
• All wetted parts with compatible
MOC and customized finish.
• Housings can accommodate a
single round of filter cartridges of
5/10/20/30/40 inches long.
• CIP and SIP capability for pharma/
biotech requirements with in situ
integrity testing capability
• Optionally with sanitary diaphragm
valves for vent, inlet and outlet
sampling
• All housings with complete
documentation for
validation
• All gaskets and polymers
compounded as per US FDA
approved polymers

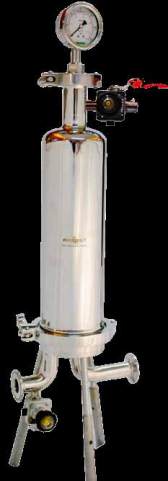

T-Line single round housings are
designed for providing a robust solution
for critical clarification or sterile filtration
applications. The housings are made
of high quality SS316L stainless steel
(for pharma / biotech applications)
and other suitable MOC as required,
to be compatible with the contact fluid.
Housings come with gaskets and O-rings
compounded only from FDA approved
materials. The housing features triclamp
design for ease of opening and closing
the housing dome. The housing also
features a choice of sanitary and non-
sanitary vent and drain valve options
The Inlet and outlet end connections
are either flanged or standard triclamp
connections. The housing is capable
of incorporating a single cartridge of
multiple lengths to suit required flow
rates.
See Page No. 22 for Ordering information
3
4
4
3
2
1
5
Air Vent
SS316L
Mirror finish
Flange or Triclamp
end connection
Diaphragm**
valve for sampling
Sealed diaphragm
pressure gauge*
** Higher temperature or Pressure
compatibility design available on request.
** Other MOC available as required
T-LINE
SINGLE ROUND
T-LINE
SINGLE ROUND
BENEFITS
• Easy cleaning and optimum flush
liquid requirement
• Quick opening and closing of the
dome hence less labour
• Precision engineering with
low tolerance ensures precise
positioning of cartridge and locking
in place
• High surface finish ensures ease of
cleanability
Diaphragm **
valve for sampling
Special Coatings
PP / PTFE / PVDF for corrosive liquids
B
A
C
Note: Specifications and dimensions may change. Please check with us before ordering.
FEATURES
*Pressure Gauge shown is not a part of standard offering
TYPE - A
A0402-01057BC 05” LONG 514 167 250
A0402-01107BC 10” LONG 635 167 250
A0402-01207BC 20” LONG 890 167 250
A0402-01307BC 30” LONG 1157 167 250
A0402-01407BC 40” LONG 1410 167 250
T LINE HOUSING
(PART NO)
DESCRIPTION A B C
TYPE
Note: All end connection are flanged or triclamp type
**Option
*Pressure Gauge shown is not a part of standard offering
