FILTER
PRESS
HORIZONTAL

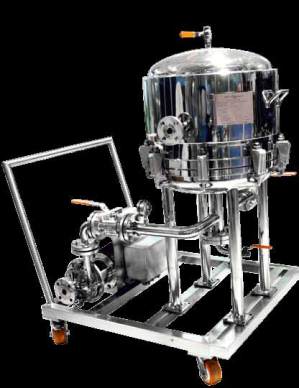

FILTER PRESS-HORIZONTAL
PLATE & FRAME
**Option
*Pressure Gauge shown is not a part of standard offering
FEATURES
• All wetted parts with
customized MOC with
customized finish.
• Available in various capacities
from 290 lph to 19000 lph
• Available diameters are 8
/14/18/24/33 inches with a
surface area ranging from
0.1 - 10 m
2
.
• Proven technology with fully
enclosed filtration.
• Skid mounted with portability
• Option of custom designed to
suit various flow rates and fluid
compatibility
BENEFITS
• High product yield with Zero
hold up design option
• Minimum cost of equipment
per unit area for solid-liquid
separation
• Precision engineering ensures
precise positioning of plates to
ensure tight sealing
See Page No. 25 for Filter Selection information
SPECIFICATIONS
FEATURES
Microfilt’s horizontal filter presses
redefine filtration through compactness,
ease of operation and robust
engineering. Ideally suited for filtration of
syrup, liquid, chemicals, oil beverages
etc. The filter presses are totally
enclosed, leak proof assembly. The
swing bolt design ensures air tight
sealing and also gives the operator
the ability to quickly assemble and
disassemble the filtration system.
Jacketing option can be provided for
heating or cooling the product
.
The zero
hold up models ensure all the fluid is
transferred to the filtrate side without any
holdup. Skid mounted assembly ensures
portability and compactness. The filter
presses are available in various MOC
to suit the product to be filtered and the
process required.
Note: Specifications and dimensions may change. Please check with us before ordering.
TYPE
Specifications
Head and bowl : SS 316L / SS304*
Legs and clamps : SS 304
‘O’ ring seal
: Silicon / PTFE / Viton / EPDM
Options: Mirror / Matte (Pharma & Biotech)
Material of construction
Surface finish
** Higher temperature or Pressure compatibility design available on
request.
** Other MOC available on request
Max Op Pressure (Pmx): 15 bar (218 psig)**
140 °C (284 °F)
Design (Pmx)
: 1.5 times
Tested (Pmx)
: 1. 2 times
Max operating temperature
Operating pressure
Special Coatings
PP / PTFE / PVDF for corrosive liquids
